- 4 voltage controlled LFOs
- Free, quadrature, phase and divide modes
- Assignable waveform outputs
- Assignable reset/tap tempo inputs
- Zoom mode for precise frequency setting
- USB conenctor for easy firmware updates
- Reverse power protection

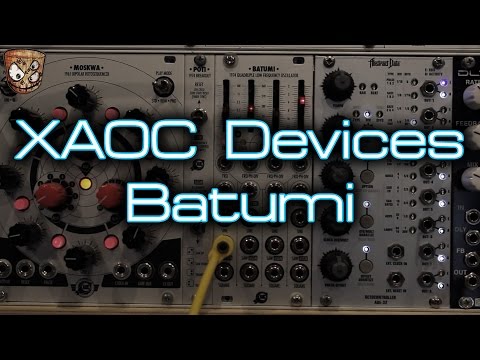

Batumi
Description
Batumi is a fully voltage controlled, quadruple digital LFO module with a slew of interesting and user-customizable features. Each oscillator can be used independently or in one of 3 synchronized modes: quadrature, phase and divide. For each oscillator, there are sine, square and assignable (saw, ramp, triangle and trapezoid) waveform otputs available. Voltage control is possible for each oscillator’s frequency, reset, and external sync (“tap tempo”).
The total frequency range spans from 28 hours in voltage controlled divide mode, up to 500 Hz.
Features
Specifications
- Width: 10HP
- Max Depth: 45mm
- Power: 70mA @+12V , 10mA @-12V , 0mA @+5V
$549.00
