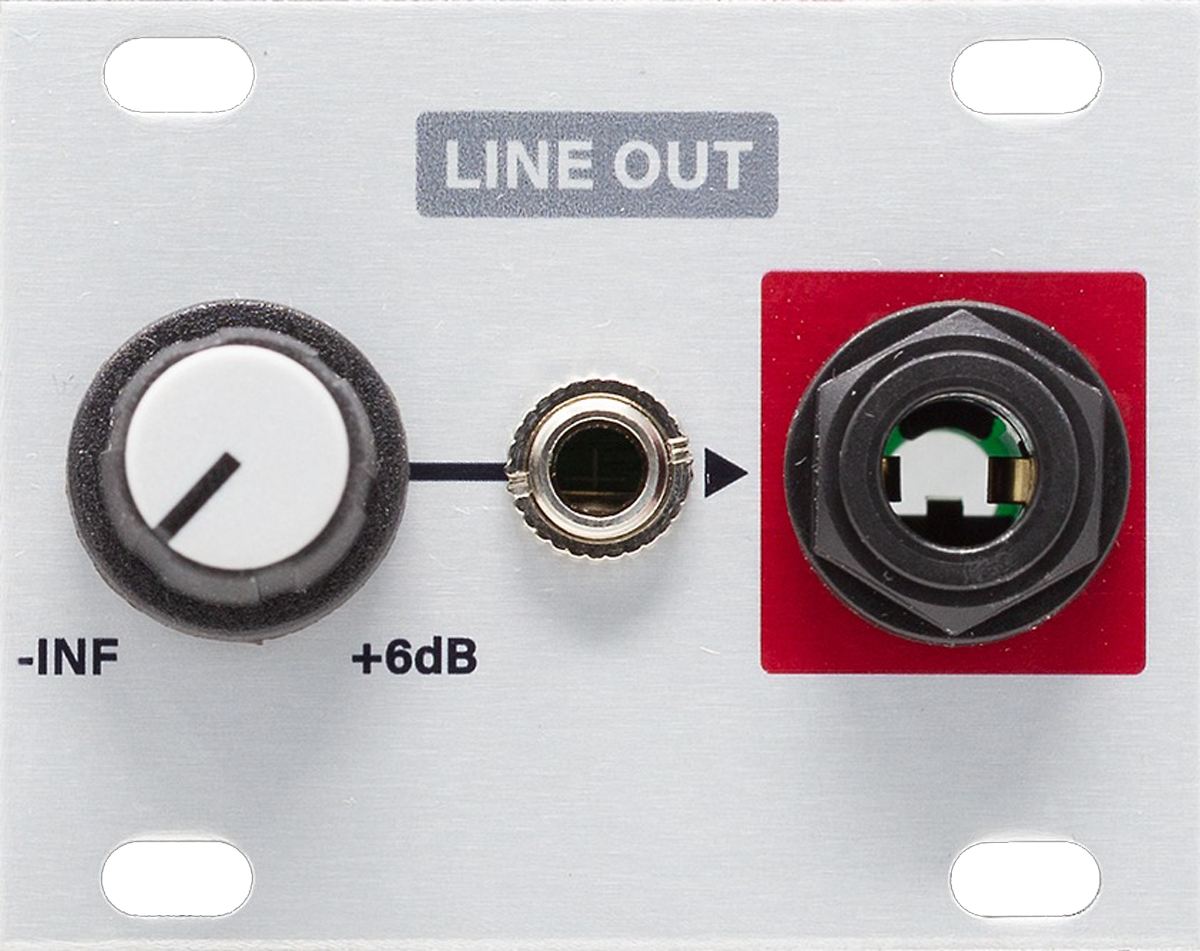

Line Out 1U


This module completes the connection between your Eurorack modular system and the audio world outside it. Convert modular signal levels to balanced, line-level audio and route it into rack-mount or desktop FX units, mixing consoles, digital audio workstations, and so on. Simply connect the desired output of your Eurorack patch to the 1/8″ jack, connect the 1/4″ jack to your destination of choice, and adjust the volume as required.


  • Output path steps a nominal Eurorack level (10 Vpp) down to +4 dBu with up to +6 dB gain.
  • Balanced TRS 1/4″ output path
  • Uses a high quality THATCorp balanced line driver IC


  • Width: 10HP
  • Depth: 27mm
  • Power: 9mA @ 12V 9mA @ -12V
